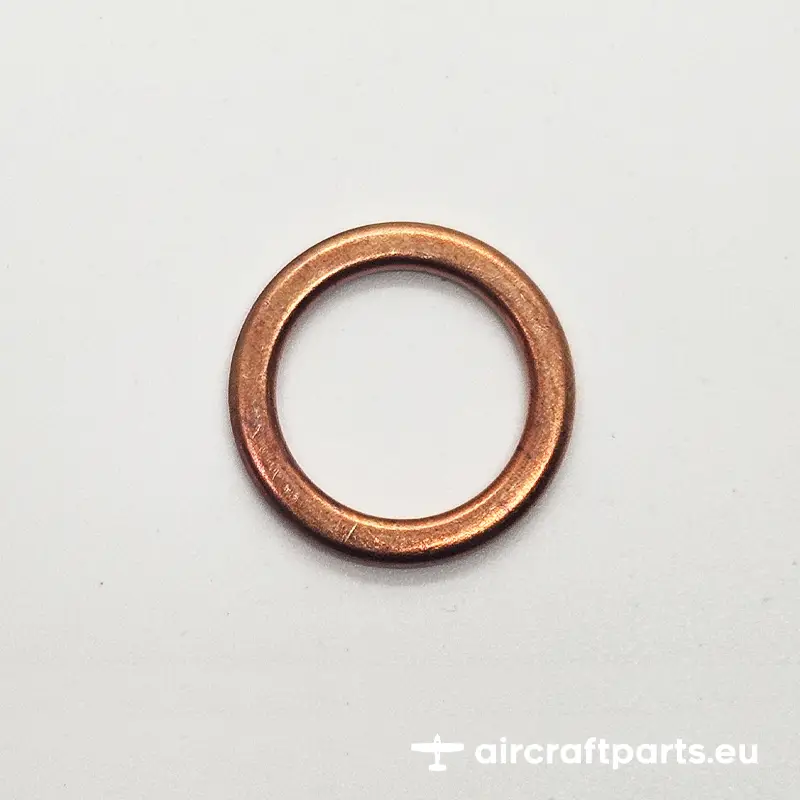

MS35769-11 Copper Crush Washer – AN900-10 Equivalent Aircraft Sealing Washer
The MS35769-11 is a high-quality copper sealing washer designed for use in certified aircraft systems where leak-proof connections are critical. Equivalent to AN900-10, this crush washer is widely used across fuel, oil, and hydraulic applications.
Manufactured from soft copper, the washer deforms under torque to fill surface imperfections, ensuring a secure and reliable seal. It is commonly used on drain plugs, fluid line fittings, and engine components in general aviation aircraft.
Key Features
- Equivalent to AN900-10
- Manufactured to MS35769 specification
- Soft copper construction for optimal sealing
- Designed for single-use (crush-type sealing)
- Resistant to fuel, oil, and hydraulic fluids
- Suitable for certified aircraft applications

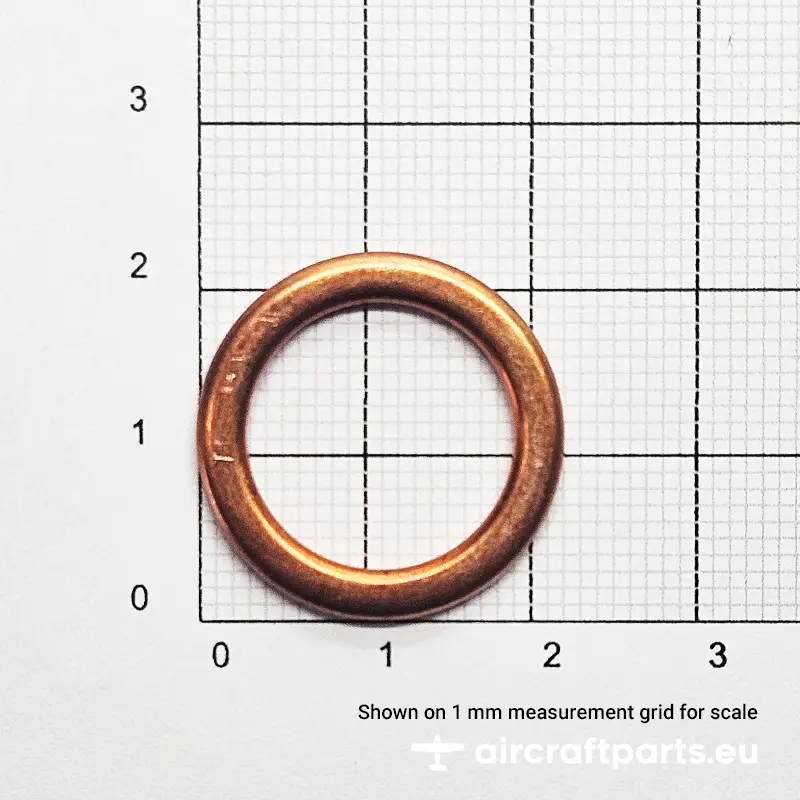

Dimensions
- Inner Diameter (ID): 0.375″
- Outer Diameter (OD): 0.625″
- Thickness: 0.063″
Typical Applications
- Oil system drain plugs
- Fuel system fittings
- Hydraulic connections
- Engine components
- General aircraft maintenance and servicing
Commonly Used With
- MS35769-21 sealing washers
- AN fittings and connectors
- Oil drain plugs
- Fuel line connections
Traceability & Certification
This product is supplied with full aviation traceability in accordance with industry standards.
✔ Manufactured by approved aerospace manufacturer (OGS Industries, Ohio, USA)
✔ Full lot and batch traceability available
✔ Documentation included with each shipment
