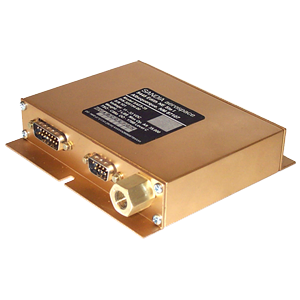

Sandia SAE5-35 Altitude Encoder - Image 1

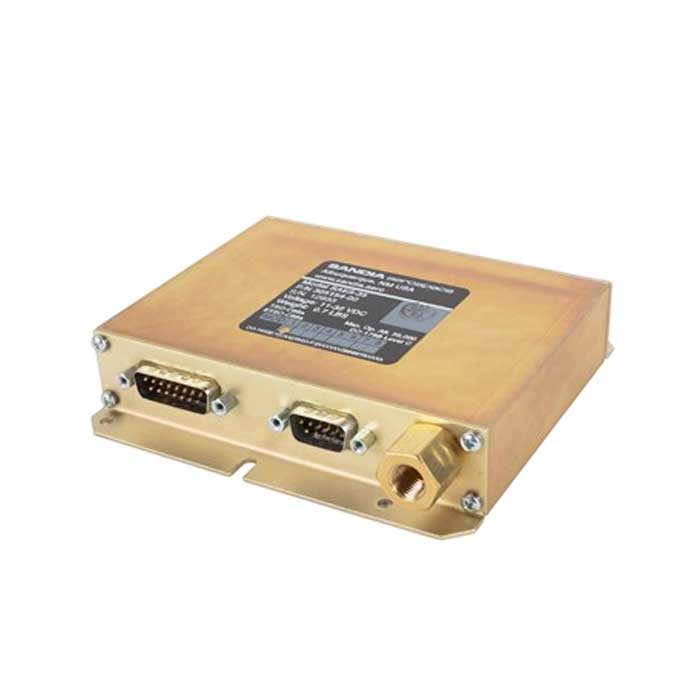

Sandia SAE5-35 Altitude Encoder - Image 2

Click to enlarge

Sandia SAE5-35 Altitude Encoder

Name: Sandia SAE5-35 Altitude Encoder
Brand: Sandia Aerospace
SKU: 705154-00
Availability: InStock

Available within 7 days

477,20 €577,41 € Excl. VATIncl. VAT

The SAE 5-35 altitude encoder provides accurate altitude data by combining altitude encoding, digital altitude on two RS-232 outputs, and altitude inflight monitoring (AIM) into a single compact and reliable unit.

Condition	Factory New
Certification	FAA 8130 or EASA Form 1
Warranty	24 Months

Part Number: 705154-00 Category: Encoders Tag: SAE5-35

Available within 7 days

Add to wishlist

We ship with trusted carriers at our negotiated rates

Pick up from our store (LKHS Airport)

Convenient Pickup at LKHS – Whether You Arrive by Car or Plane

Description

Sandia SAE5-35 Altitude Encoder Features

Certified to 35,000 feet
Transponder Grey Code resolution in 100 feet
AIM system maintains selected altitude
Alerts when deviations of 100 ft or more occur
Two RS232 digital output with a 10-foot resolution
Digital altitude for GPS and TAWS systems
Altitude In-flight monitoring
Low profile — only 1.1 inch — for versatile mounting options
TSO approval

Specification

Technical Overview

Certification	TSO-C88a
Altitude inflight monitoring (AIM) output	80mA maximum lamp current 50V maximum off voltage
Power input	11-33 VDC
Current	0.9 A (with the heater on)
Outputs	One grey code Two RS232
Resolution	Grey code 100 ft RS232 10 ft
Accuracy	50 ft or better throughout the range
Altitude	35,000 ft
