Trig Avionics Complete Stack

Trig Avionics Complete Stack

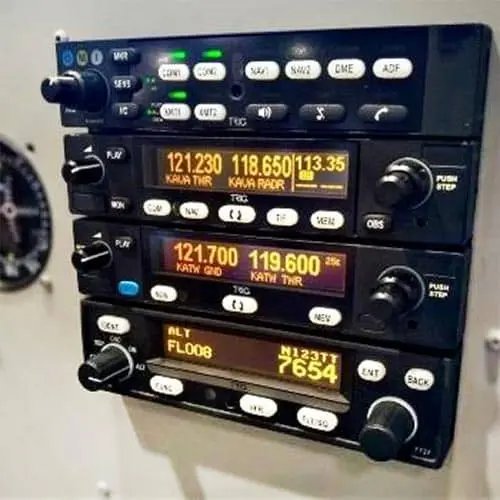

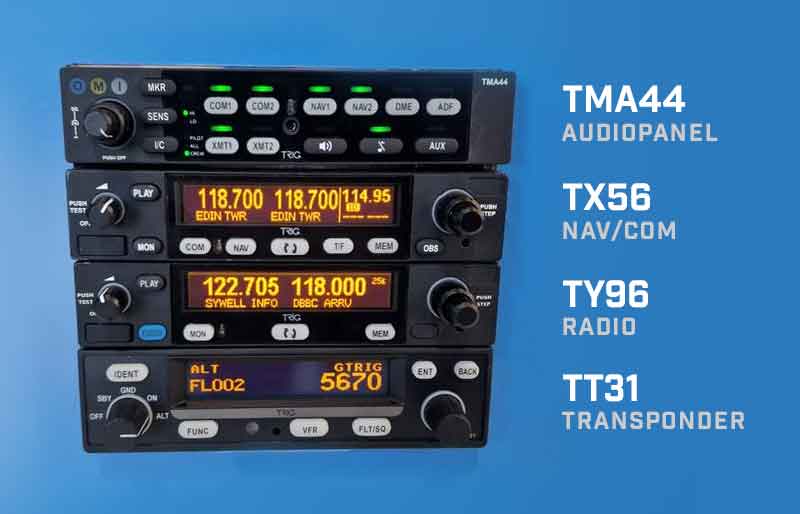

Trig Avionics complete stack includes an audio panel, VHF radio, Nav/Com and Mode S transponder. All installation kits, manuals, Trig USB sticks, and manufacturer certificates are included.

Trig Avionics brings together a complete avioinics stack for both VFR and IFR flights (with an approved CDI such as Trig TI106). All Trig units are subject to a 2 year warranty, starting from the date of installation.

This slimline and attractive package is of an exceptional value and will look great in every aircraft panel.

Trig TMA44 Standard Audio Panel
An Ideal Audio Panel to Enhance Your Stack

The TMA44 suits aircraft owners looking for a great value panel that covers aviation requirements. This mono panel supports 2-4 seats with independent control of crew and passenger audio. Two additional unswitched inputs are included for audio alerts, such as stall or undercarriage warnings. The option of playing music via two custom inputs is enhanced by the TMA44’s ‘smooth fade’ feature. This automatically adjusts music levels to ensure vital radio information is always clearly received.

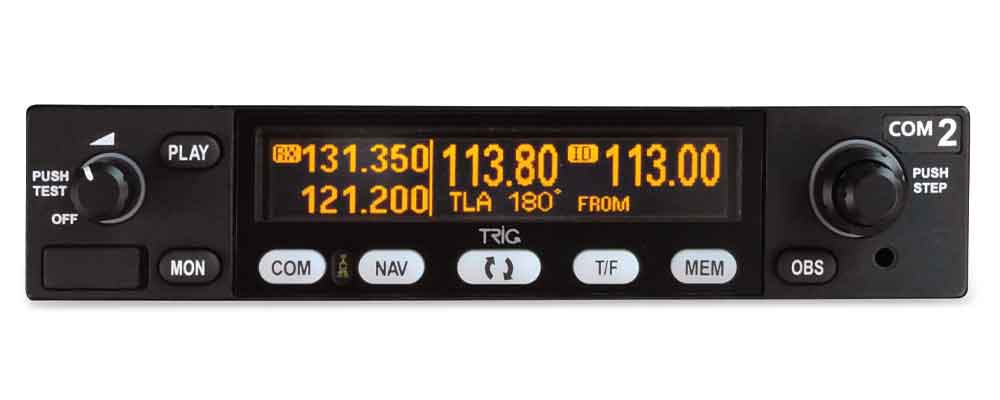

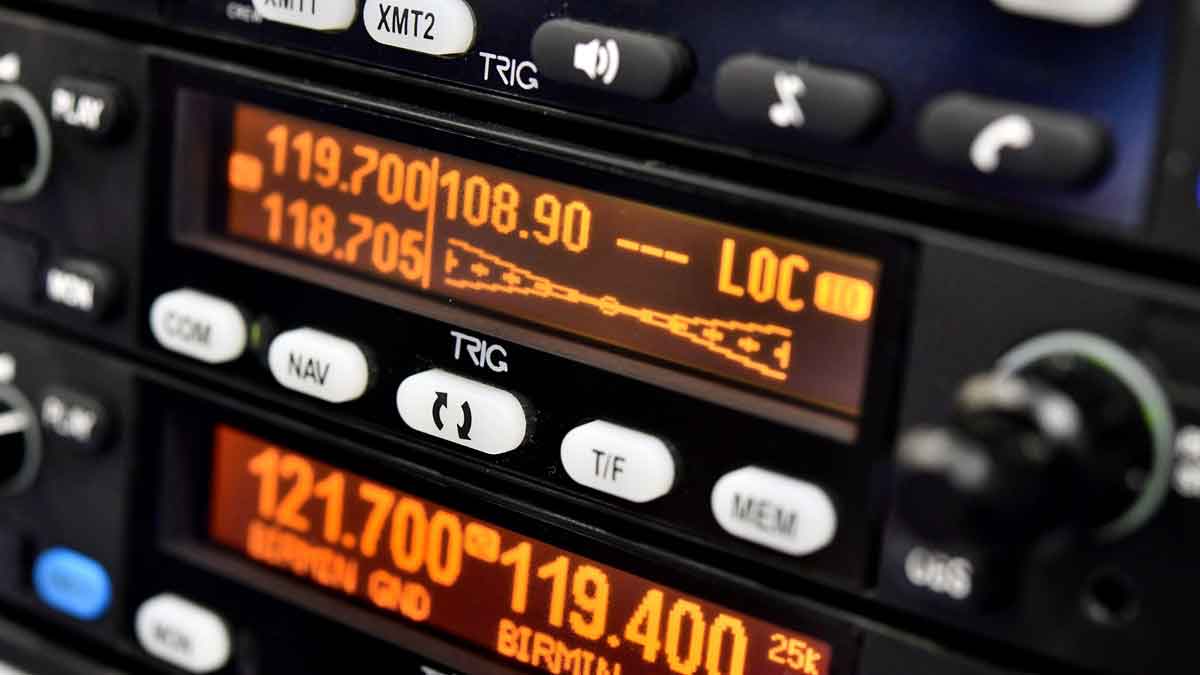

Trig TX56 NAV/COM
Full-Featured NAV/COM Platform to Update Legacy Avionics or Equip Your New Aircraft

The slimline and highly efficient Trig TX56 model is housed within a superbly engineered case. At only 1.3” (33mm) high, each unit saves valuable space yet contains an impressive selection of practical features for any pilot. The Nav/Com display is clear and bright, showing both primary and secondary frequencies along with airfield / VOR identifiers. A ‘Push Step’ knob allows the fastest change from 25 kHz to 50 kHz.

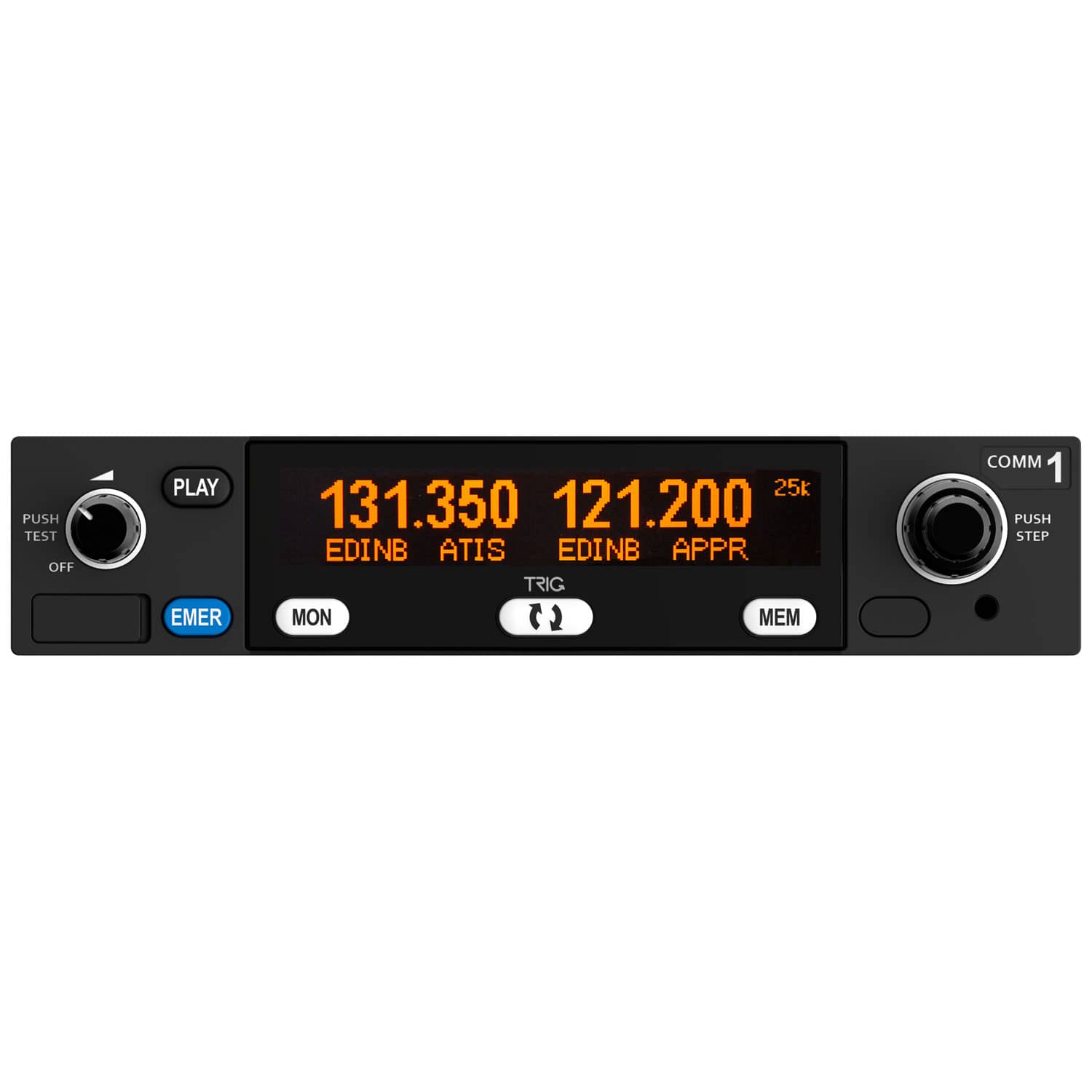

Trig TY96 VHF Radio
Features That Matter. Crisp & Clear Stereo Comm, Faster Tuning, Dual Watch, ‘Say Again’ and More!

Trig TY96 VHF Panel Mounted Radio defines a new standard in communication design, and it is packed with pilot-friendly features. It is suited for most general aviation use. Trig also offers a more powerful TY97A 16-Watt model, where a higher transmission output is required. Both radios can be used on a 28 Volt system. However, the TY97A is designed for a 28 Volt supply in order to provide a 16 Watt output.

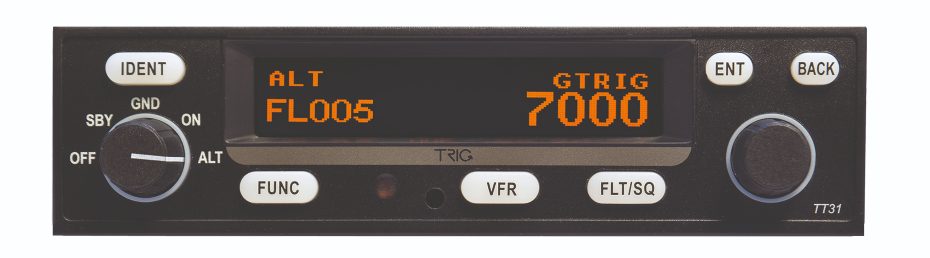

Trig TT31 S Mode Transponder
Class Leading ADS-B Capable Transponder

The TT31 transponder is the perfect retrofit unit for the popular Bendix King KT76A and KT78A XPDRs. Trig TT31 is a certified Class 1 transponder that will ‘plug and play’ straight into the existing Bendix King tray, significantly reducing both installation time and cost. It provides pilots with class-leading Mode S technology that is also 1090ES ADS-B Out capable.
