Trig TT21 Mode S Transponder with Integrated Altitude Encoder

• Compact form factor – takes minimal panel space, fits in a compact or standard 57mm instrument hole.
• Minimal depth – create space on your panel for other avionics.
• Integrated altitude encoder
• Certified for IFR / VFR flight
• Manual dimming feature (adjustable backlight)
• Low power consumption
• EASA ETSO and FAA TSO Certification – includes TSO-C166b the latest ADS-B standard
• Free European Minor Change approvals
• Free FAA ADS-B STC for 576 aircraft types
• Unbeatable value and quality – designed and manufactured in the U.K.

PRODUCT DESIGN

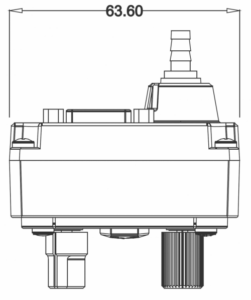

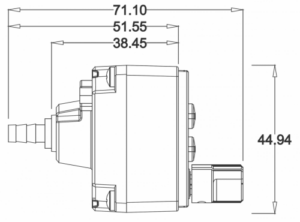

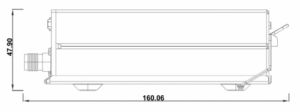

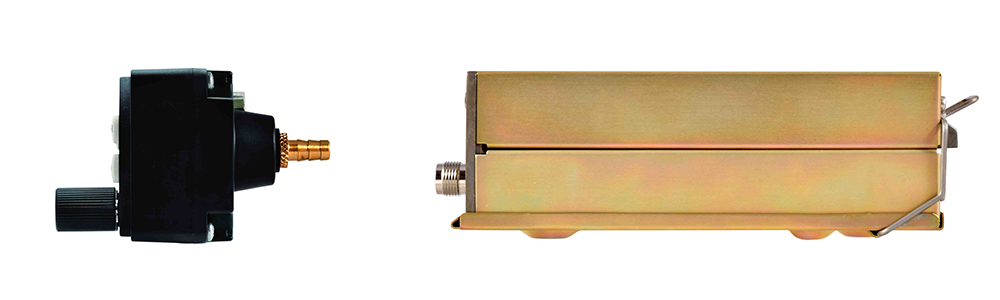

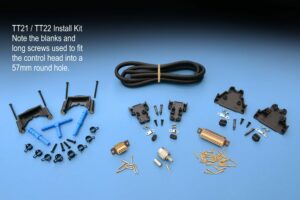

Trig’s compact transponder is in two parts with a compact control head; this includes an inbuilt altitude encoder – saving further space and expense. A separate hardware box can be installed anywhere in the airframe. The mounted control head is only 54mm (2 3/25”) deep and can be fitted in panel using a 57mm (2 ¼”) round hole or smaller compact mount – the unit ships with the necessary fittings for both install options. Our compact transponders are highly efficient, whilst used in a wide range of GA types they are ideally suited for use in gliders and balloons, via an auxiliary battery.

Trig’s compact transponders are easy to operate and have a crisp, bright display that’s easy to read in all lighting conditions and is equipped with manual dimming. The transponder control head is splash proof too, so it’s ideal for open cockpit and seaplane operations.

POWER OUTPUT AND ADS-B

Trig’s TT21 has a 130 watts nominal power output, making it a class 2 transponder that meets international standards for 1090ES ADS-B Out (TSO C166b). The TT21 is ideal for use in flight where a light weight Mode S solution is required and is suitable for both IFR and VFR use.

COMPATIBLE TRIG PRODUCTS

ADS-B enhances safety and visibility – your investment in a TT22 transponder is future proof. Trig has a matching certified GPS position source that is highly affordable called the TN72. This is ideal for ADS-B voluntary equipage and the TN72 can even be used to meet the 2020 mandate by light-sport, experimental and homebuilt types in the U.S.

Our TN70 GPS position source is suitable for certified Part 23 aircraft that need a TSO-C145 position source, for operations in 2020 rule ADS-B airspace using a TT22 transponder.

Customers in the U.S. should be aware that FAA 14 CFR 91.227 requires that a compliant ADS-B Out solution uses a Class 1 transponder. The TT22 is a Class 1 device and meets this requirement. The TT21 is a Class 2 device and does not meet this regulation.
