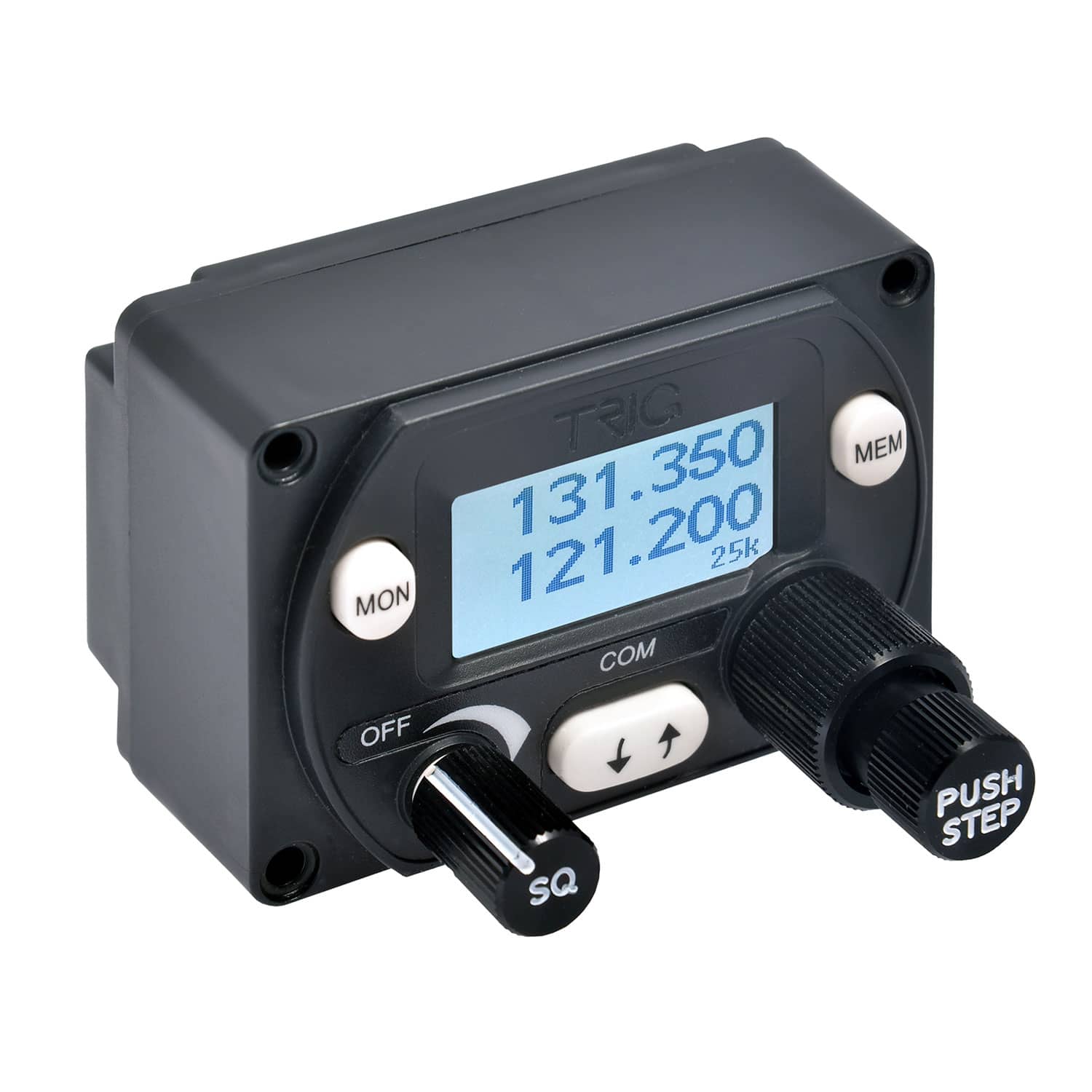

Trig TY91 (6W) is a compact, panel-saving VHF COM radio certified to FAA TSO and EASA ETSO standards. Supporting 8.33 kHz and 25 kHz channel spacing, it features Dual Watch, a built-in two-place intercom, and Trig’s unique ‘Push Step’ frequency selection for fast, intuitive tuning.
The TY91 operates on 11–33V DC (suitable for 14V and 28V aircraft systems) and is ideal for GA aircraft where panel space and installation depth are limited.
Complete set (P/N 01079-00) includes control head, remote radio unit, mounting tray, installation kit, and documentation.
Trig TY91 – Certified Performance in a Small Form Factor
- Nominal 6W transmitter power output
- 8.33 kHz and 25 kHz channel spacing
- Dual Watch: monitor two frequencies at the same time
- ‘Push Step’ knob for fast switching between 8.33 kHz and 25 kHz step sizes
- Two-place intercom built-in (headset settings adjustable)
- Adjustable screen brightness / backlight dimming
- Remote-mounted radio unit for flexible installations
- EFIS/GPS integration support (SL40 and GTR225 protocols)
- Two-year warranty (per Trig warranty terms)
GPS / EFIS Compatibility
The TY91 can integrate with compatible GPS navigators to automatically display en-route radio frequencies. Control of the radio via an EFIS display is also possible using industry-standard SL40 and GTR225 protocols, enabling flexible integration with other avionics.
Installation-Friendly Design

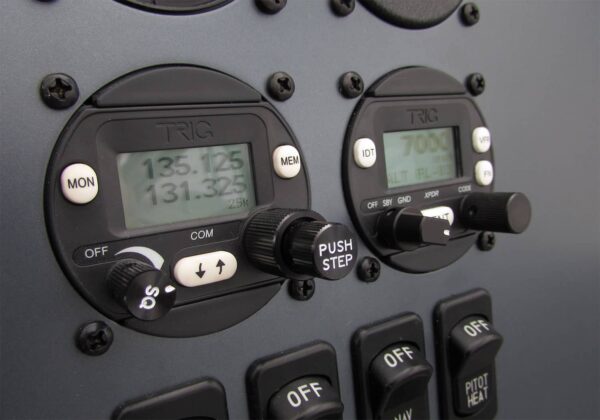

The TY91 uses a panel-mounted control head with a separate remote-mounted radio unit, providing additional installation options where panel depth is limited. The control head can be mounted in a 57 mm (2¼”) round hole, and the installed depth of the control head is approximately 74 mm (3”).

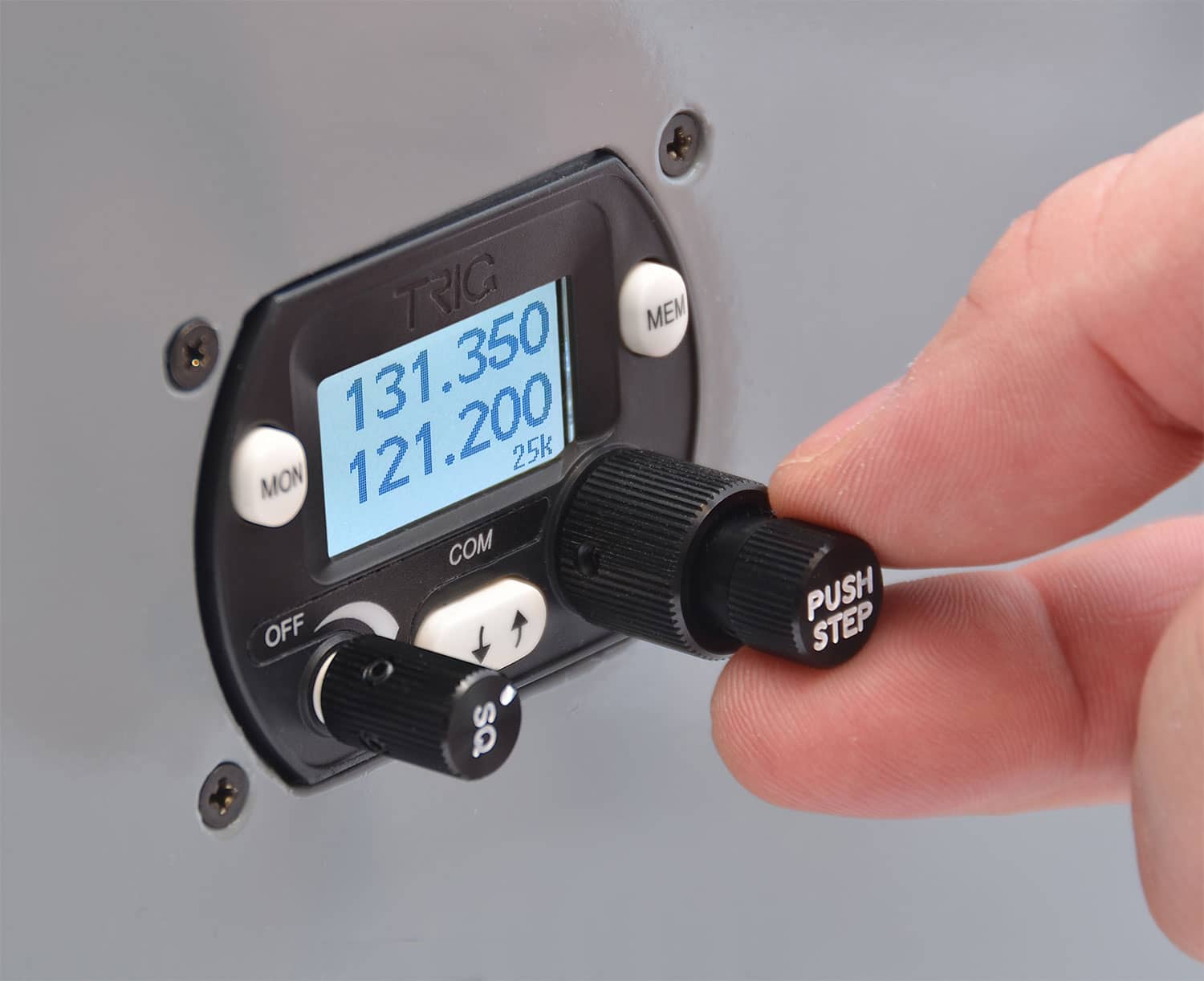

Push Step & Dual Watch

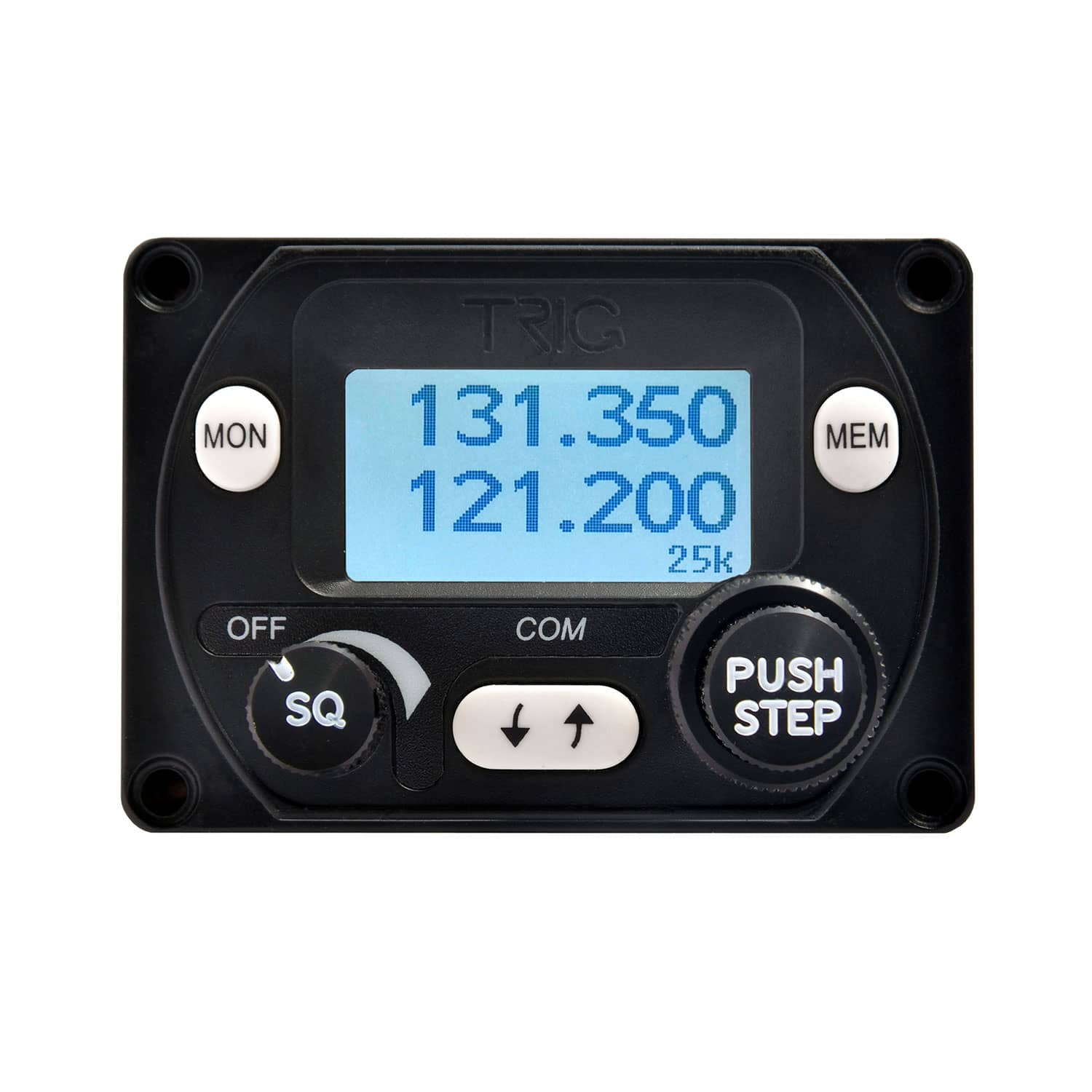

The display shows both active and standby frequencies. The ‘Push Step’ knob allows quick switching between 8.33 kHz and 25 kHz spacing, while Dual Watch lets you monitor two frequencies at the same time.
Intercom & Audio
The built-in two-place intercom is designed for use with standard aviation headsets. The system can also drive an external speaker via the internal audio amplifier (often used in glider installations). If using a dynamic microphone, an amplified adaptor may be required (see installation manual).
What’s Included (P/N 01079-00)
- Radio control head
- Remote hardware unit
- Mounting tray
- Installation kit
- Manuals / documentation
Documentation
TY91/TY92 Installation Manual (PDF)
TY91/TY92 Operating Manual (PDF)
Quick Specs
- Output power: 6W nominal
- Spacing: 8.33 kHz / 25 kHz
- Power input: 11–33V DC
- Design: Control head + remote radio unit
- Key features: Dual Watch, Push Step, built-in 2-place intercom
