uAvionix AV-30-E Primary Flight Display – Experimental

The uAvionix AV-30E is a multifunction electronic flight instrument designed specifically for experimental and light sport aircraft. Installed in a standard 3-1/8 inch round instrument cutout, the AV-30E replaces multiple legacy analog gauges with a single, highly configurable digital display, offering exceptional capability with minimal panel modification.

Advanced Flight Instrument Functionality

The AV-30E provides solid-state attitude information using internal sensors, delivering reliable pitch and roll indications without the mechanical limitations of traditional gyroscopic instruments. In addition to attitude, the instrument can display airspeed, altitude, vertical speed, heading, slip/skid, g-load, and angle of attack.

Multiple display layouts and color themes allow pilots to configure the instrument to match their aircraft type, mission profile, and personal preferences. The flexible presentation makes the AV-30E suitable for VFR, aerobatic, and cross-country operations.

Angle of Attack and Performance Awareness

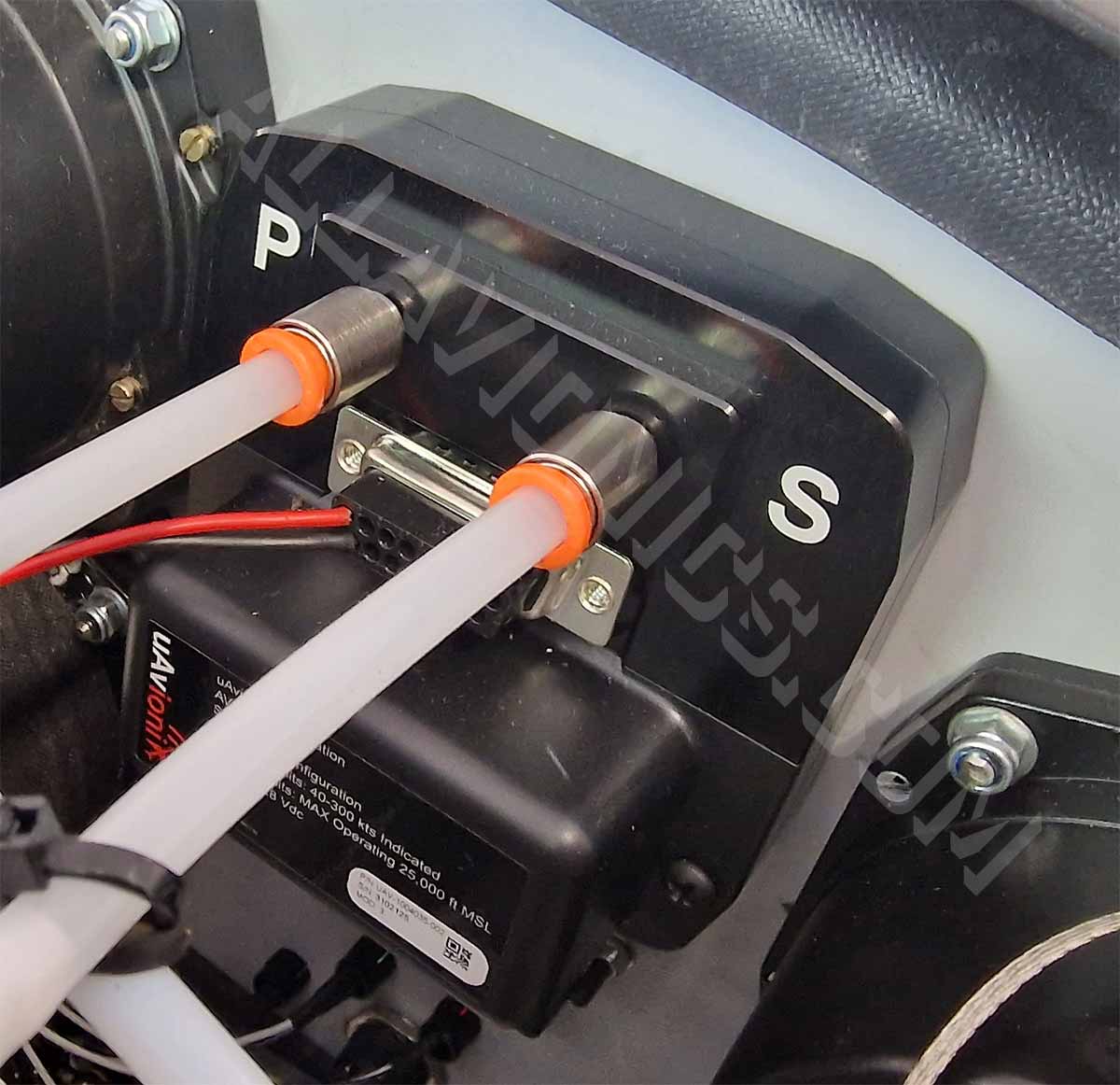

A key advantage of the AV-30E is its integrated angle of attack (AoA) functionality. When connected to the appropriate pressure sources, the instrument provides visual and aural AoA cues, helping pilots better manage energy state, approach consistency, and stall margins.

This feature is especially valuable in experimental aircraft where performance characteristics can vary significantly between designs.

Heading, Magnetometer, and GPS Integration

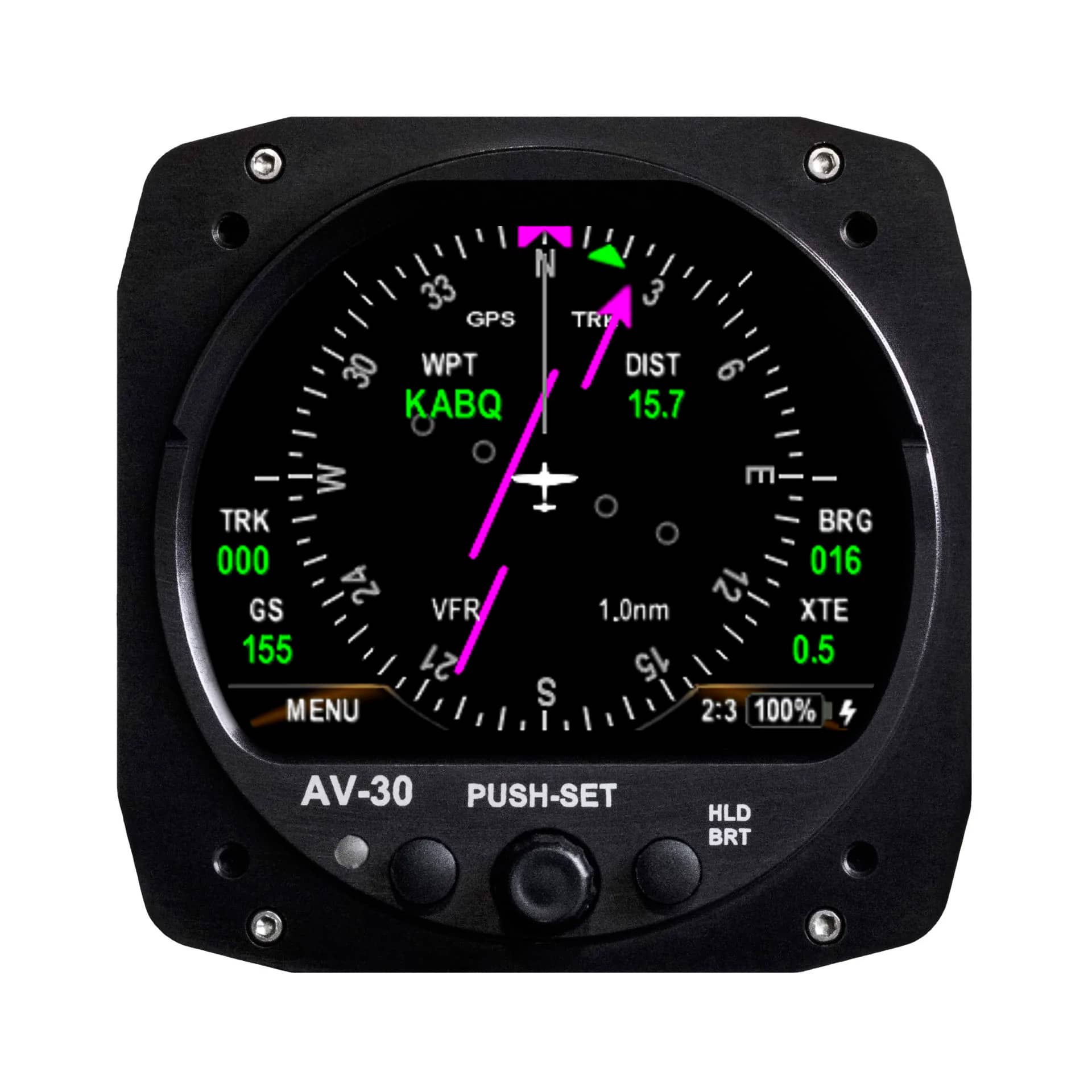

When paired with an external magnetometer, such as the uAvionix AV-Mag, the AV-30E provides stabilized magnetic heading, allowing it to replace a traditional directional gyro. The instrument also supports serial connections to compatible GPS sources, enabling display of ground track and other navigation-related data.

Experimental approval allows broader integration flexibility, making the AV-30E adaptable to a wide range of avionics configurations.

Internal Backup Power and Reliability

The AV-30E includes an internal backup battery, providing continued operation in the event of aircraft electrical system failure. This enhances redundancy and safety, particularly in aircraft with simplified electrical architectures.

Solid-state sensors eliminate mechanical wear and vacuum system dependencies, reducing maintenance requirements and improving long-term reliability.

Installation Flexibility for Experimental Aircraft

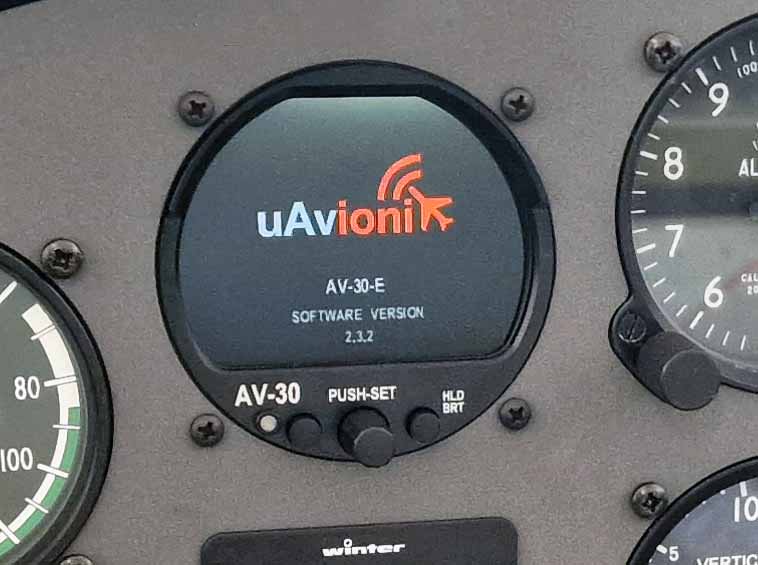

Designed as a drop-in replacement for legacy round instruments, the AV-30E installs into existing 3-1/8 inch cutouts. Experimental aircraft builders and owners benefit from flexible installation options, configurable inputs, and the ability to tailor the instrument’s role within the panel.

Firmware updates allow continued feature enhancement, giving the AV-30E a future-proof design well suited to evolving experimental aircraft needs.

Key Benefits

• Electronic flight instrument for experimental and LSA aircraft
• Standard 3-1/8 inch round instrument form factor
• Attitude, airspeed, altitude, vertical speed, and heading display
• Integrated angle of attack functionality
• Configurable screen layouts and color themes
• Internal backup battery for power-loss protection
• Solid-state sensors for improved reliability
• Compatible with external magnetometer and GPS sources

The uAvionix AV-30E delivers exceptional capability and flexibility for experimental aircraft owners seeking modern digital instrumentation without the cost, weight, or complexity of a full EFIS system.

In the box

• uAvionix AV-30 Experimental Unit
• Install Hardware
• Harness Kit (Serial connectors, pins, case housing, grounding strap, etc.)
• uAvionix Sticker
