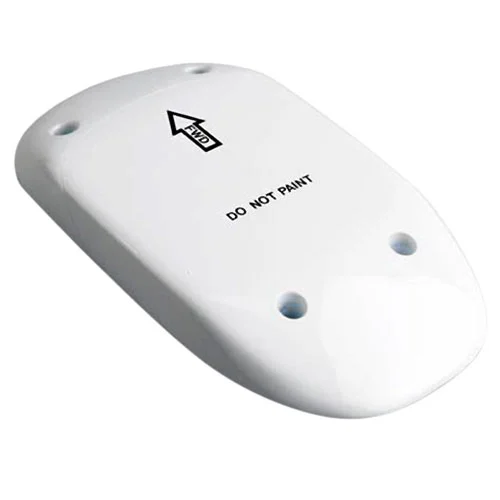

BendixKing ANT-67A TCAS Directional Antenna

Name: BendixKing ANT-67A TCAS Directional Antenna
Brand: BendixKing
SKU: 071-01548-0200
Availability: InStock

Available within 7 days

6722,00 €8133,62 € Excl. VATIncl. VAT

Factory new BendixKing ANT-67A TCAS directional antenna designed to connect with CAS-66A and CAS-67A TCAS I & II processor units. This ANT-67A version – Part Number 071-01548-0200 – features a 0.73″ coax connector.

Condition	Factory New
Certification	FAA 8130 or EASA Form 1
Warranty	24 Months

Part Number: 071-01548-0200 Category: TCAS Antennas Tags: CAS 66A, TCAS

Available within 7 days

Add to wishlist

We ship with trusted carriers at our negotiated rates

Pick up from our store (LKHS Airport)

Convenient Pickup at LKHS – Whether You Arrive by Car or Plane

Description

BendixKing ANT-67A TCAS Directional Antenna

Directional TCAS antenna for CAS-66A and CAS-67A TCAS I & II systems
Installs on either the top or bottom of the aircraft
Top-mounted is always required in the TCAS II system, and a bottom-mounted antenna may be used for intruder bearing
Four-element passive array
Screw mount installation (4 screws)
Radiates 1030 Mhz, pulse-modulated input from TPU-67A processor
Detects radiated 1090 MHz pulse-modulated signals
Meets swept zone 2A lightning strike requirements

Specification

Technical Overview

Certifications	FAA TSO C118, C119a
Form Factor	ARINC 735 (teardrop)
Max Peak Input Power	1000W Pulsed
Max Average Input Power	10W Continuous
Polarization	Vertical
Operating Altitude	Category F2 55000FT
Pressurization	Withstand differential pressure of 25 PSIA
VSWR	1.35:1 Max
Operating Temperature	-55 to 70C
Lightning Protection	Meets swept zone 2A lightning strike requirements
Power Requirements	None
Coax connector length	0.73″
