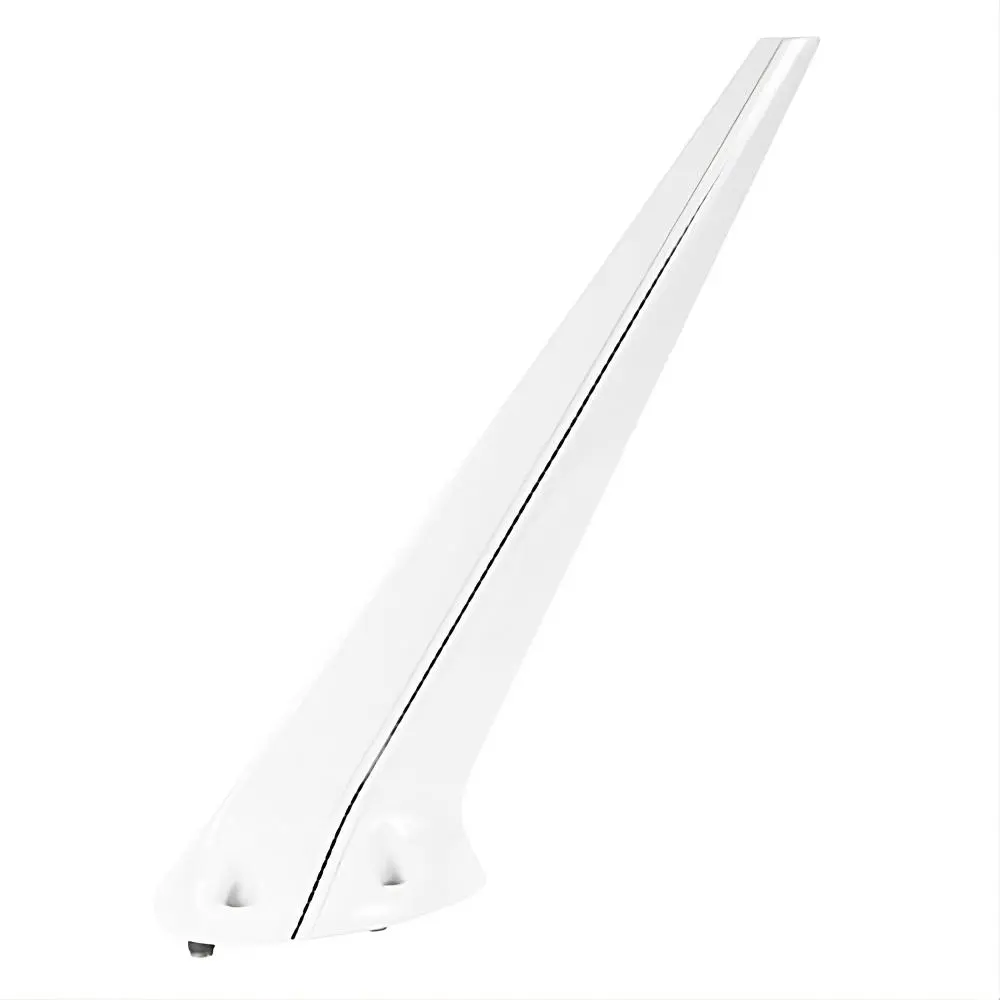

Comant CI 2728-410 ComDat Blade Antenna

Available within 7 days

4278,00 5176,38  Excl. VATIncl. VAT

Comant CI 2728-410 ComDat antenna combining VHF communication and GPS in one low-profile aircraft antenna. Ideal for modern GA avionics installations.

Condition Factory New
Certification Certificate of Conformity (CoC)
Warranty 24 Months
Part Number: CI 2728-410 Categories: , , Tag:

Available within 7 days

Shipping Methods

We ship with trusted carriers at our negotiated rates

  • Pick up from our store (LKHS Airport)

Convenient Pickup at LKHS – Whether You Arrive by Car or Plane

Description

The Comant CI 2728-410 ComDat antenna is a dual-function aviation antenna designed to combine VHF communication and GPS capability into a single, low-profile installation. By integrating both functions into one antenna, the CI 2728-410 helps reduce aircraft drag, minimize installation complexity, and free up valuable mounting locations on the airframe.

Designed for general aviation aircraft, this ComDat antenna is commonly used in modern avionics installations where both reliable VHF communication and GPS signal reception are required. Its aerodynamic profile makes it well suited for aircraft owners and operators looking to maintain clean exterior lines while supporting advanced avionics systems.

Manufactured by Comant to meet aviation performance and durability standards, the CI 2728-410 is suitable for approved installations when installed in accordance with applicable aircraft data and avionics manufacturer requirements.

Key Features

  • Combined VHF communication and GPS antenna
  • Reduces the number of external antennas required
  • Low-profile, aerodynamic design
  • Supports clean and efficient aircraft installations
  • Designed for general aviation applications
  • Manufactured by Comant, a trusted aviation antenna supplier

Specification

Technical Overview

CertificationTSO FAA: C169, C144 RTCA: DO-160D
Frequencies:VHF: 118 MHz to 137 MHz GPS: 1575.42 ± 3 MHz XM/Weather: 2332.5 MHz to 2345 MHz
VSWRVHF: 2.5:1, max GPS: 1.5:1, max XM Weather: 1.5:1, max
PolarizationVHF: Vertical GPS: RHCP XM Weather: LHCP Radiation Pattern: VHF: Onmi-directional GPS: Hemispherical XM Weather: Hemispherical
Impedance50Ω
XM Weather25 ± 2 dB
DC GainGPS: 26.5 VDC to 31.5 VDC
DC Voltage4 VDC to 24 VDC
DC CurrentGPS: 40 mA typ. / 60 mA max
Noise3.8 dB Max
ConnectorsVHF: BNC GPS: TNC XM: SMA
