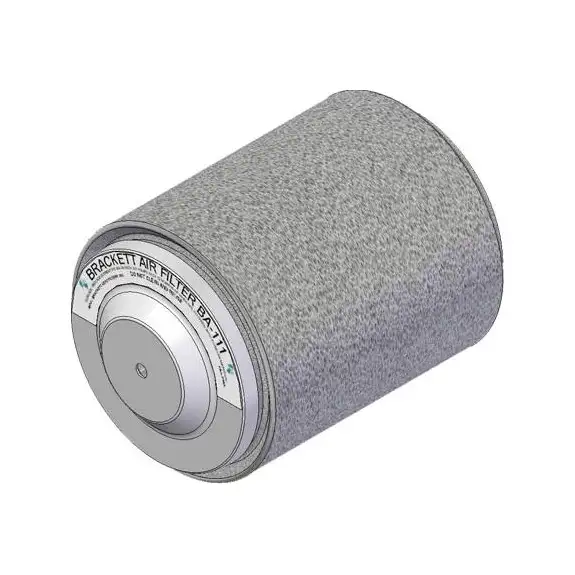

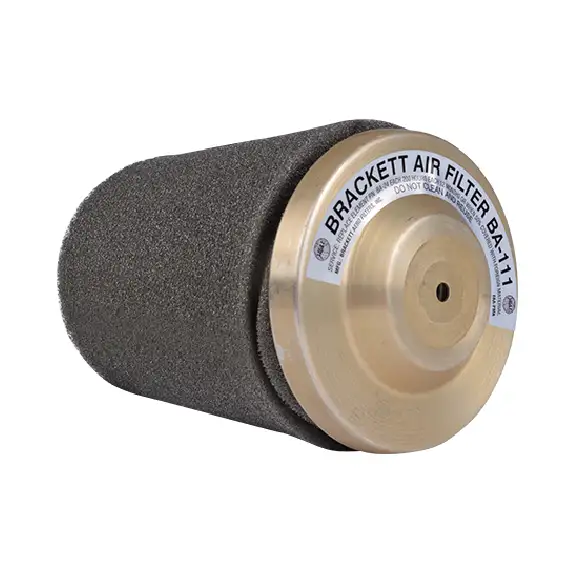

Brackett BA-24 Air Filter Element for BA-111

The Brackett BA-24 Air Filter Element is the replacement filter element designed specifically for the Brackett BA-111 aircraft engine induction air filter assembly.

Manufactured from lightweight polyurethane foam, the BA-24 element uses Brackett’s wetted filter design to efficiently capture dust and airborne contaminants while maintaining low restriction to engine induction airflow.

Brackett rates the treated element at approximately 98% filtration efficiency. The element also receives a fire-retardant treatment for use in aircraft engine induction applications.

Unlike washable automotive-style filters, the BA-24 is designed as an economical replaceable element. Brackett specifies replacement after 200 hours of operation or 12 months, or earlier when approximately 50% of the element surface is covered with foreign material.

For aircraft already equipped with an approved BA-111 assembly, replacing the BA-24 element provides a straightforward way to maintain the filtration performance of the induction system without replacing the complete filter assembly.

Key Features

• Genuine Brackett Aero Filters replacement element
• Designed specifically for the BA-111 filter assembly
• Lightweight polyurethane construction
• Wetted filter treatment for efficient dust capture
• Approximately 98% filtration efficiency
• Fire-retardant treated element
• Designed for low-restriction engine induction airflow
• Economical replaceable filter element
• Recommended replacement interval: 200 hours / 12 months
• Replace earlier if approximately 50% contaminated
• Do not wash or reuse

Aircraft Applicability

The Brackett BA-24 is the replacement element for BA-111 filter assemblies installed on eligible aircraft including:

Maintenance & Replacement

Under normal operating conditions, Brackett recommends replacing the BA-24 filter element after:

200 operating hours or 12 months, whichever occurs first.

In severely dusty conditions, the filter should be inspected more frequently and replaced when approximately 50% of the element surface is covered with foreign material.

Important

Do not wash and reuse the BA-24 element.

The BA-24 is designed as a disposable replacement filter element. Always follow the applicable aircraft maintenance instructions and Brackett continued-airworthiness requirements.
